What is the OBD Driver ?

The OBD Driver is the gas mileage gauge of the car. It takes out information from OBD2 diagnosis connector of the car and calculates the gas mileage and display it in real time.
The OBD Driver uses the Android device and displays information in big-screen full color.
The "Serial Port Profile(SPP)" in your Android device is necessary to use this application.
Please buy the OBD Bluetooth device in yourself.
OBD Driver

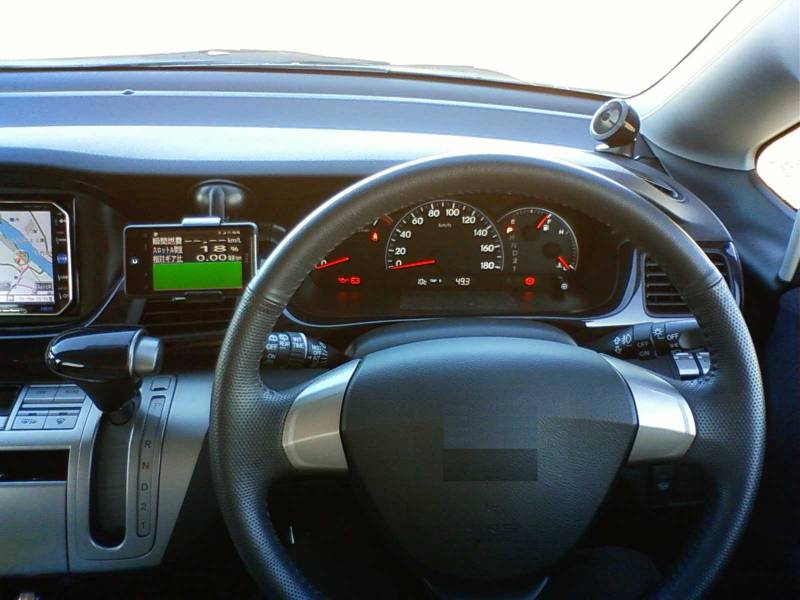

An example of installation.



Functions

The new OBD Driver adopted "Multi-Window System". You can mix maximum 10 windows on the screen. The following operations are available.

· Drag  ---  Move the window.

· Tap  ---  Show the next page.

· Double tap  ---  Switch to full screen view or normal view.

· Long tap (press and hold)  ---  Display the pop-up menu.

· Pinch-in/out  ---  Reduce or enlarge the window. ※ Please operate it very slowly. In certain model, this operation can not be performed.



OBD Driver
Sample 1
(Enlarge the image)


Map and Markers

The left image show the "Moment Mileage" with a marker. The red markers are bad mileage, and the green markers are good mileage, and the blue markers are no consumption fuel.
OBD Driver
Sample 2
(Enlarge the image)


Doctor Mileage

The doctor teach you the eco-driving. If you keep driving praised by the doctor continuously, the gas mileage improves automatically.
OBD Driver
Sample 3
(Enlarge the image)


Analog meter display

Adopted the analog meter display with good visibility. You can choose an item from 35 different informations.

In addition, by describing the config.xml file, you are free to customize the color and hand angle.
OBD Driver
Sample 4
(Enlarge the image)


Tag information display

You can paste the Tag information to your favorite screen.
※ Please move Tag information again when you change the orientation of the screen.
OBD Driver
Sample 5
(Enlarge the image)


Window display

There were well-established in the old "OBD Mileage", the information displayed by graph and character is now in the "Window display". You can see and compare lots of informations on one screen.
OBD Driver
Sample 6
(Enlarge the image)


This sample is "Full-Screen View" like the old OBD Driver app.
OBD Driver
Sample 7
(Enlarge the image)


You can switch to full-screen view by double-tap.
OBD Driver
An example of customization.
(Enlarge the image)


This is the example which customized a screen in detail.

It customized a background image and back color of a meter and hand angle.
You can create an original gas mileage meter easily.

※ The PC is necessary to customize this application.

Detail of information    ※ The information that this application can display varies according to a car model.
Info No.Info NameDetail
0SpeedCurrent speed.
1Engine RPMCurrent engine RPM.
2Coolant temp.Current coolant temperature.
3In-Air temp.Current intake air temperature.
4In-Air pressureCurrent intake manifold pressure.
5In-Air flowCurrent intake air flow.
6Timing adv.Current timing advance.
7Engine loadCurrent calculated engine load.
8Throttle pos.Current throttle position.
9Short fuel trimCurrent short term fuel trim.
10Long fuel trimCurrent long term fuel trim.
11O2 sensorCurrent O2 sensor voltage.
12Relative gear ratioThis is the relative gear ratio that is calculated from current speed and engine RPM.
13Battery voltBattery voltage at OBD2 connector.
14Fuel 1 sec.Current fuel consumption.
15Fuel minutelyLatest minutely fuel consumption.
16MomentCurrent gas mileage.
17MinutelyLast minutely gas mileage.
18SectionThis is the gas mileage of the specific section. You can reset it by menu operation. It start a gas mileage measurement again at the spot that you reset it.
19DriveThis is the gas mileage of up to now since you started current driving.
20TripThis is the gas mileage such as time when you went for a trip. The value is maintained even if you finish application. You can reset it by menu operation.
21TotalThis is the gas mileage of the cumulative total since you installed this application. The value is maintained even if you finish application. You can reset it by menu operation.
22100 metersThis is the gas mileage that is displayed every 100 meters. A value is cleared when the car stops.
23Speed divisionThis is the gas mileage that is calculated by 5km/h division. You can know "best fuel-efficient speed" by a graph.
24Drive dist.The distance of current driving.
25Trip dist.This is the distance such as time when you went for a trip. The value is maintained even if you finish application.
26Total dist.This is the distance of the cumulative total since you installed this application.
27Drive fuelThis is the fuel volume of up to now since you started current driving.
28Drive costThis is the fuel cost of up to now since you started current driving.
29Trip fuelThis is the fuel volume such as time when you went for a trip. The value is maintained even if you finish application.
30Trip costThis is the fuel cost such as time when you went for a trip. The value is maintained even if you finish application.
31Total fuelThis is the fuel volume of the cumulative total since you installed this application.
32Total costThis is the fuel cost of the cumulative total since you installed this application.
33Total CO2This is the CO2 volume of the cumulative total since you installed this application.
34Drive timeThe time of current driving.
35Stop timeThe stop time of current driving.
36Stop time rateThe stop time rate of current driving.
37Stop fuelThis is fuel volume when a car is a stop.
38Stop fuel rateThis is a rate of the "Stop fuel" and the "Drive fuel".
39Average speedThe average speed of current driving.
40Driving scoreThe eco-driving score of current driving.( max 100 points )
41Fuel-less dist. rateThis is the distance ratio that you drove a car without using the fuel at the time of engine braking. You can aim at gas mileage improvement if you try to increase this value.
42Engine stop countThis is the engine stop count in current driving. It is equal to the number of times that you performed "idling stop". In hybrid car, it is counted when the engine stopped in running.
43Engine stop timeThis is the engine stop time in current driving. It is equal to time that you performed "idling stop". In hybrid car, it is measured when the engine stopped in running.
44Engine stop time rateThis is a rate of the "Drive time" and the "Engine stop time".
45Engine stop dist.This is the distance that you ran in the state of an engine stop. In hybrid car, it is equal to the distance that a car ran by a motor only. (except some hybrid cars) You can aim at gas mileage improvement if you try to increase this value.
46Engine stop dist. rateThis is a rate of the "Drive distance" and the "Engine stop distance". You can aim at gas mileage improvement if you try to increase this value.
47X accelerationThe X acceleration sensor value of Android device.
48Y accelerationThe Y acceleration sensor value of Android device.
49Z accelerationThe Z acceleration sensor value of Android device.
50GPS lat.The GPS latitude of Android device.
51GPS lon.The GPS longitude of Android device.
52GPS alt.The GPS altitude of Android device.
53GPS speedThe GPS speed of Android device.
54DateCurrent date.
55TimeCurrent time.



Specification
Product Name OBD Driver
Usable Android device The smart phone and the tablet device meeting the following conditions.
1. Android OS Version 2.3.3 and after.
2. The Bluetooth "Serial Port Profile(SPP)" is necessary to use this application.
Usable OBD device ELM327 Version 1.2 and after with Bluetooth communication.
Please check here.
Car model The car is based upon the OBD2 protocols.
OBD2 protocols It can detect following protocols automatically.

  SAE J1850 PWM (41.6Kbps)
  SAE J1850 VPW (10.4Kbps)
  ISO 9141-2 (5 baud init)
  ISO 14230-4 KWP (5 baud init)
  ISO 14230-4 KWP (fast init)
  ISO 15765-4 CAN (11 bit ID 500Kbps)
  ISO 15765-4 CAN (29 bit ID 500Kbps)
  ISO 15765-4 CAN (11 bit ID 250Kbps)
  ISO 15765-4 CAN (29 bit ID 250Kbps)
  SAE J1939 CAN (29 bit ID 250Kbps)

It can choose following protocols manually.

  TOYOTA CAN , TOYOTA K-LINE , SUZUKI K-LINE , DAIHATSU K-LINE
  ISO CAN 11bit ID ECU 0 , ISO CAN 11bit ID ECU 2
  ISO CAN 29bit ID ECU 0 , ISO CAN 29bit ID ECU 2
Information items Max 56 items. ( see above list )  ※ The information that this application can display varies according to a car model.
Unit You can choose the following unit with a set up screen.
Distance unit  km , mile
Fuel unit  liter , gallon (USA)
Gas Mileage unit  km/liter , mile/liter , mile/gallon , km/gallon
  CO2 g/km , liter/100km
Temperature unit  Celsius or Fahrenheit
Money unit  USD , Euro , Pound , Ruble , PLN , YEN
Languages English , French , Spanish , Italian , Portuguese , German , Russian , Polish , Japanese
Log data storage You can choose max 20 items from all 56 kinds of information. You can adjust the logging period in milli-seconds. The information is stored to the SD card in real time. It is written with a comma separated file. ( .csv file )
Alarm You can choose max three items from the following information. Speed, Engine RPM, Coolant temp., Throttle position. The alarm warn with a color and a sound.
Customization You can customize this application by XML configuration file in the SD card. You can change 23 kinds of items like a background image and a color and a graph and more. You can change the alarm value and a color and a sound.
Google Play URL https://play.google.com/store/apps/details?id=com.obddriver.free
※ It changes the specifications without a notice.
